Install VirtualBox and phpVirtualBox on CentOS 7

Install VirtualBox and phpVirtualBox on CentOS 7

VirtualBox is a free and open-source hypervisor, developed by Oracle Corporation. VirtualBox supports all popular operating system platforms. VirtualBox is also used as the Provider for Vagrant, a server orchestration software.

phpVirtualBox is a web interface for administration of VirtualBox servers. phpVirtualBox is a free and open source web application. phpVirtualBox is written in PHP thus requires a Web Server with PHP language support for deployment.

In this article, we are installing VirtualBox and phpVirtualBox on CentOS 7 server.



This Article Provides:



    Environment Specification:

    We have configured a CentOS 7 virtual machine with following specifications.

    • CPU - 3.4 Ghz (2 cores)
    • Memory - 2 GB
    • Storage - 20 GB
    • Operating System - CentOS 7.6
    • Hostname - virtualbox-01.example.com
    • IP Address - 192.168.116.185/24



    Installing VirtualBox on CentOS 7:

    Connect with virtualbox-01.example.com using ssh as root user.

    Install VirtualBox prerequisite packages using yum command.

    [root@virtualbox-01 ~]# yum install -y kernel-devel-$(uname -r) kernel-headers gcc make perl wget
    ...
    Installed:
    gcc.x86_64 0:4.8.5-36.el7_6.2
    kernel-devel.x86_64 0:3.10.0-957.el7
    kernel-headers.x86_64 0:3.10.0-957.21.3.el7
    perl.x86_64 4:5.16.3-294.el7_6
    wget.x86_64 0:1.14-18.el7_6.1

    Dependency Installed:
    cpp.x86_64 0:4.8.5-36.el7_6.2
    glibc-devel.x86_64 0:2.17-260.el7_6.6
    glibc-headers.x86_64 0:2.17-260.el7_6.6
    libmpc.x86_64 0:1.0.1-3.el7
    mpfr.x86_64 0:3.1.1-4.el7
    perl-Carp.noarch 0:1.26-244.el7
    perl-Encode.x86_64 0:2.51-7.el7
    perl-Exporter.noarch 0:5.68-3.el7
    perl-File-Path.noarch 0:2.09-2.el7
    perl-File-Temp.noarch 0:0.23.01-3.el7
    perl-Filter.x86_64 0:1.49-3.el7
    perl-Getopt-Long.noarch 0:2.40-3.el7
    perl-HTTP-Tiny.noarch 0:0.033-3.el7
    perl-PathTools.x86_64 0:3.40-5.el7
    perl-Pod-Escapes.noarch 1:1.04-294.el7_6
    perl-Pod-Perldoc.noarch 0:3.20-4.el7
    perl-Pod-Simple.noarch 1:3.28-4.el7
    perl-Pod-Usage.noarch 0:1.63-3.el7
    perl-Scalar-List-Utils.x86_64 0:1.27-248.el7
    perl-Socket.x86_64 0:2.010-4.el7
    perl-Storable.x86_64 0:2.45-3.el7
    perl-Text-ParseWords.noarch 0:3.29-4.el7
    perl-Time-HiRes.x86_64 4:1.9725-3.el7
    perl-Time-Local.noarch 0:1.2300-2.el7
    perl-constant.noarch 0:1.27-2.el7
    perl-libs.x86_64 4:5.16.3-294.el7_6
    perl-macros.x86_64 4:5.16.3-294.el7_6
    perl-parent.noarch 1:0.225-244.el7
    perl-podlators.noarch 0:2.5.1-3.el7
    perl-threads.x86_64 0:1.87-4.el7
    perl-threads-shared.x86_64 0:1.43-6.el7

    Dependency Updated:
    glibc.x86_64 0:2.17-260.el7_6.6 glibc-common.x86_64 0:2.17-260.el7_6.6
    libgcc.x86_64 0:4.8.5-36.el7_6.2 libgomp.x86_64 0:4.8.5-36.el7_6.2

    Complete!

    The vboxdrv.service requires same kernel-devel modules as of running Kernel. Otherwise, after installation vboxdrv.service will throw errors. Therefore, we have used $(uname -r) with above yum command

    VirtualBox is distributed via its own yum repository. Therefore, we have to install VirtualBox yum repository first and then we will be able to install VirtualBox software.

    Download and add VirtualBox yum repository in our CentOS 7 server.

    [root@virtualbox-01 ~]# wget https://download.virtualbox.org/virtualbox/rpm/el/virtualbox.repo -O /etc/yum.repos.d/virtualbox.repo
    --2019-07-15 21:24:40-- https://download.virtualbox.org/virtualbox/rpm/el/virtualbox.repo
    Resolving download.virtualbox.org (download.virtualbox.org)... 104.103.58.103
    Connecting to download.virtualbox.org (download.virtualbox.org)|104.103.58.103|:443... connected.
    HTTP request sent, awaiting response... 200 OK
    Length: 259 [text/plain]
    Saving to: â/etc/yum.repos.d/virtualbox.repoâ

    100%[======================================>] 259 --.-K/s in 0.05s

    2019-07-15 21:24:42 (4.88 KB/s) - â/etc/yum.repos.d/virtualbox.repoâ saved [259/259]

    Build cache for VirtualBox yum repository.

    [root@virtualbox-01 ~]# yum makecache fast
    Loaded plugins: fastestmirror
    Loading mirror speeds from cached hostfile
    * base: ftp3.isra.edu.pk
    * extras: ftp3.isra.edu.pk
    * updates: ftp3.isra.edu.pk
    base | 3.6 kB 00:00
    extras | 3.4 kB 00:00
    updates | 3.4 kB 00:00
    virtualbox/7/x86_64/signature | 181 B 00:00
    Retrieving key from https://www.virtualbox.org/download/oracle_vbox.asc
    Importing GPG key 0x98AB5139:
    Userid : "Oracle Corporation (VirtualBox archive signing key) <info@virtualbox.org>"
    Fingerprint: 7b0f ab3a 13b9 0743 5925 d9c9 5442 2a4b 98ab 5139
    From : https://www.virtualbox.org/download/oracle_vbox.asc
    Is this ok [y/N]: y
    virtualbox/7/x86_64/signature | 2.9 kB 00:05 !!!
    virtualbox/7/x86_64/primary_db | 130 kB 00:01
    Metadata Cache Created

    Now we can install VirtualBox using yum command.

    [root@virtualbox-01 ~]# yum install -y VirtualBox-6.0.x86_64
    ...
    Installed:
    VirtualBox-6.0.x86_64 0:6.0.8_130520_el7-1

    Dependency Installed:
    SDL.x86_64 0:1.2.15-14.el7
    dejavu-fonts-common.noarch 0:2.33-6.el7
    dejavu-sans-fonts.noarch 0:2.33-6.el7
    fontconfig.x86_64 0:2.13.0-4.3.el7
    fontpackages-filesystem.noarch 0:1.44-8.el7
    libICE.x86_64 0:1.0.9-9.el7
    libSM.x86_64 0:1.2.2-2.el7
    libX11.x86_64 0:1.6.5-2.el7
    libX11-common.noarch 0:1.6.5-2.el7
    libXau.x86_64 0:1.0.8-2.1.el7
    libXcursor.x86_64 0:1.1.15-1.el7
    libXdamage.x86_64 0:1.1.4-4.1.el7
    libXext.x86_64 0:1.3.3-3.el7
    libXfixes.x86_64 0:5.0.3-1.el7
    libXmu.x86_64 0:1.1.2-2.el7
    libXrender.x86_64 0:0.9.10-1.el7
    libXt.x86_64 0:1.1.5-3.el7
    libXxf86vm.x86_64 0:1.1.4-1.el7
    libglvnd.x86_64 1:1.0.1-0.8.git5baa1e5.el7
    libglvnd-glx.x86_64 1:1.0.1-0.8.git5baa1e5.el7
    libvpx.x86_64 0:1.3.0-5.el7_0
    libxcb.x86_64 0:1.13-1.el7
    libxshmfence.x86_64 0:1.2-1.el7
    mesa-libGL.x86_64 0:18.0.5-4.el7_6
    mesa-libglapi.x86_64 0:18.0.5-4.el7_6
    opus.x86_64 0:1.0.2-6.el7

    Complete!

    vboxdrv.service is automatically enabled and started by VirtualBox installation process.

    Check status of vboxdrv.service.

    [root@virtualbox-01 ~]# systemctl status vboxdrv.service
    â vboxdrv.service - VirtualBox Linux kernel module
    Loaded: loaded (/usr/lib/virtualbox/vboxdrv.sh; enabled; vendor preset: disabled)
    Active: active (exited) since Mon 2019-07-15 21:38:55 PKT; 53s ago
    Process: 33168 ExecStart=/usr/lib/virtualbox/vboxdrv.sh start (code=exited, status=0/SUCCESS)

    Jul 15 21:38:55 virtualbox-01.example.com systemd[1]: Starting VirtualBox Lin...
    Jul 15 21:38:55 virtualbox-01.example.com vboxdrv.sh[33168]: vboxdrv.sh: Star...
    Jul 15 21:38:55 virtualbox-01.example.com systemd[1]: Started VirtualBox Linu...
    Hint: Some lines were ellipsized, use -l to show in full.

    VirtualBox 6.0 has been installed on our CentOS 7 server.



    Installing VirtualBox Extension Pack on CentOS 7:

    VirtualBox is splitted into two components.

    • Base Package
    • Extension Packs

    We have already installed VirtualBox Base Package above. Now, we are installing VirtualBox Extension Pack to extend the functionality of VirtualBox software.

    VirtualBox Extension Pack is available at VirtualBox Official Download Page. It consist of a single universal package that supports all platforms.

    We are downloading it using wget command.

    [root@virtualbox-01 ~]# cd /tmp
    [root@virtualbox-01 tmp]# wget https://download.virtualbox.org/virtualbox/6.0.8/Oracle_VM_VirtualBox_Extension_Pack-6.0.8.vbox-extpack
    --2019-07-15 21:43:24-- https://download.virtualbox.org/virtualbox/6.0.8/Oracle_VM_VirtualBox_Extension_Pack-6.0.8.vbox-extpack
    Resolving download.virtualbox.org (download.virtualbox.org)... 104.69.150.156
    Connecting to download.virtualbox.org (download.virtualbox.org)|104.69.150.156|:443... connected.
    HTTP request sent, awaiting response... 200 OK
    Length: 23309069 (22M) [text/plain]
    Saving to: âOracle_VM_VirtualBox_Extension_Pack-6.0.8.vbox-extpackâ

    100%[======================================>] 23,309,069 459KB/s in 65s

    2019-07-15 21:44:29 (352 KB/s) - âOracle_VM_VirtualBox_Extension_Pack-6.0.8.vbox-extpackâ saved [23309069/23309069]

    Install VirtualBox Extension Pack using VBoxManage command.

    [root@virtualbox-01 tmp]# VBoxManage extpack install Oracle_VM_VirtualBox_Extension_Pack-6.0.8.vbox-extpack
    VirtualBox Extension Pack Personal Use and Evaluation License (PUEL)

    License version 10, 20 July 2017

    PLEASE READ THE FOLLOWING ORACLE VM VIRTUALBOX EXTENSION PACK PERSONAL
    USE AND EVALUATION LICENSE CAREFULLY BEFORE DOWNLOADING OR USING THE
    ORACLE SOFTWARE. THESE TERMS AND CONDITIONS CONSTITUTE A LEGAL AGREEMENT
    BETWEEN YOU AND ORACLE.

    ORACLE AMERICA, INC. ("ORACLE") IS WILLING TO LICENSE THE PRODUCT DEFINED
    IN SECTION 1 BELOW ONLY ON THE CONDITION THAT YOU ACCEPT ALL OF THE TERMS
    CONTAINED IN THIS VIRTUALBOX EXTENSION PACK PERSONAL USE AND EVALUATION
    LICENSE AGREEMENT ("AGREEMENT").

    IF YOU ARE AGREEING TO THIS LICENSE ON BEHALF OF AN ENTITY (RATHER THAN
    AS AN INDIVIDUAL HUMAN BEING), YOU REPRESENT THAT YOU HAVE THE APPROPRIATE
    AUTHORITY TO ACCEPT THESE TERMS AND CONDITIONS ON BEHALF OF SUCH ENTITY.

    1 SUBJECT OF AGREEMENT. This Agreement governs your use of the binary
    software package called "Oracle VM VirtualBox Extension Pack" (the
    "Product"), which contains a set of additional features for "Oracle
    VM VirtualBox" that enhance the operation of multiple virtual machines
    ("Guest Computers") on a single physical computer ("Host Computer"). The
    Product consists of executable files in machine code, script files,
    data files, and all documentation and updates provided to You by Oracle.

    2 GRANT OF LICENSE. Oracle grants you a personal, non-exclusive,
    non-transferable, limited license without fees to reproduce, install,
    execute, and use internally the Product on Host Computers for
    your Personal Use, Educational Use, or Evaluation. "Personal Use"
    is noncommercial use solely by the person downloading the Product
    from Oracle on a single Host Computer, provided that no more than one
    client or remote computer is connected to that Host Computer and that
    client or remote computer is used solely to remotely view the Guest
    Computer(s). "Educational Use" is any use by teachers or students in
    an academic institution (schools, colleges and universities) as part of
    the institution's educational curriculum. "Evaluation" means testing the
    Product for up to thirty (30) days; after expiry of that term, you are
    no longer permitted to use the Product. Personal Use and/or Educational
    Use expressly exclude any use of the Product for commercial purposes or
    to operate, run, or act on behalf of or for the benefit of a business,
    organization, governmental organization, or educational institution.

    Oracle reserves all rights not expressly granted in this license.

    3 RESTRICTIONS AND RESERVATION OF RIGHTS.

    (1) The Product and copies thereof provided to you under this Agreement
    are copyrighted and licensed, not sold, to you by Oracle.

    (2) You may not do any of the following: (a) modify any part of the
    Product, except to the extent allowed in the documentation accompanying
    the Product; (b) rent, lease, lend, re-distribute, or encumber the
    Product; (c) remove or alter any proprietary legends or notices contained
    in the Product; or (d) decompile, or reverse engineer the Product
    (except to the extent permitted by applicable law).

    (3) The Product is not designed, licensed or intended for use in the
    design, construction, operation or maintenance of any nuclear facility
    and Oracle and its licensors disclaim any express or implied warranty
    of fitness for such uses.

    (4) No right, title or interest in or to any trademark, service mark, logo
    or trade name of Oracle or its licensors is granted under this Agreement.

    4 TERMINATION. The Agreement is effective on the date you receive the
    Product and remains effective until terminated. Your rights under this
    Agreement will terminate immediately without notice from Oracle if
    you materially breach it or take any action in derogation of Oracle's
    and/or its licensors' rights to the Product. Oracle may terminate this
    Agreement immediately should any part of the Product become or in Oracle's
    reasonable opinion likely to become the subject of a claim of intellectual
    property infringement or trade secret misappropriation. Upon termination,
    you will cease use of and destroy all copies of the Product under your
    control and confirm compliance in writing to Oracle. Sections 3-9,
    inclusive, will survive termination of the Agreement.

    5 DISCLAIMER OF WARRANTY. TO THE EXTENT NOT PROHIBITED BY APPLICABLE LAW,
    ORACLE PROVIDES THE PRODUCT "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER
    EXPRESS OR IMPLIED. WITHOUT LIMITING THE FOREGOING, ORACLE SPECIFICALLY
    DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
    PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. The entire risk as
    to the quality and performance of the Product is with you. Should it
    prove defective, you assume the cost of all necessary servicing, repair,
    or correction.

    6 LIMITATION OF LIABILITY. TO THE EXTENT NOT PROHIBITED BY APPLICABLE LAW,
    IN NO EVENT WILL ORACLE OR ITS LICENSORS BE LIABLE FOR ANY LOST REVENUE,
    PROFIT, DATA, OR DATA USE, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL,
    INCIDENTAL OR PUNITIVE DAMAGES, HOWEVER CAUSED REGARDLESS OF THE THEORY
    OF LIABILITY, ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY TO
    USE THE PRODUCT, EVEN IF ORACLE HAS BEEN ADVISED OF THE POSSIBILITY OF
    SUCH DAMAGES. In no event will Oracle's liability to you, whether in
    contract, tort (including negligence), or otherwise, exceed the amount
    paid by you for the Product under this Agreement.

    7 SEPARATELY LICENSED THIRD PARTY TECHNOLOGY. The Product may contain
    or require the use of third party technology that is provided with
    the Product. Oracle may provide certain notices to you in the Product's
    documentation, readmes or notice files in connection with such third party
    technology. Third party technology will be licensed to you either under
    the terms of this Agreement or, if specified in the documentation, readmes
    or notice files, under Separate Terms. Your rights to use Separately
    Licensed Third Party Technology under Separate Terms are not restricted
    in any way by this Agreement. However, for clarity, notwithstanding the
    existence of a notice, third party technology that is not Separately
    Licensed Third Party Technology shall be deemed part of the Product and
    is licensed to You under the terms of this Agreement. "Separate Terms"
    refers to separate license terms that are specified in the Product's
    documentation, readmes or notice files and that apply to Separately
    Licensed Third Party Technology. "Separately Licensed Third Party
    Technology" refers to third party technology that is licensed under
    Separate Terms and not under the terms of this Agreement.

    8 EXPORT. Export laws and regulations of the United States and any other
    relevant local export laws and regulations apply to the Product. You
    agree that such export laws govern your use of the Product (including
    technical data) provided under this Agreement, and you agree to comply
    with all such export laws and regulations (including "deemed export" and
    "deemed re-export" regulations). You agree that no data, information,
    and/or Product (or direct product thereof) will be exported, directly or
    indirectly, in violation of these laws, or will be used for any purpose
    prohibited by these laws including, without limitation, nuclear, chemical,
    or biological weapons proliferation, or development of missile technology.

    9 U.S. GOVERNMENT END USERS. Oracle programs, including the Product,
    any operating system, integrated software, any programs installed on
    hardware, and/or documentation, delivered to U.S. Government end users
    are "commercial computer software" pursuant to the applicable Federal
    Acquisition Regulation and agency-specific supplemental regulations. As
    such, use, duplication, disclosure, modification, and adaptation of
    the programs, including any operating system, integrated software,
    any programs installed on the hardware, and/or documentation, shall
    be subject to license terms and license restrictions applicable to the
    programs. No other rights are granted to the U.S. Government.

    10 MISCELLANEOUS. This Agreement is the entire agreement between you
    and Oracle relating to its subject matter. It supersedes all prior or
    contemporaneous oral or written communications, proposals, representations
    and warranties and prevails over any conflicting or additional terms
    of any quote, order, acknowledgment, or other communication between
    the parties relating to its subject matter during the term of this
    Agreement. No modification of this Agreement will be binding, unless in
    writing and signed by an authorized representative of each party. If any
    provision of this Agreement is held to be unenforceable, this Agreement
    will remain in effect with the provision omitted, unless omission would
    frustrate the intent of the parties, in which case this Agreement will
    immediately terminate. This Agreement is governed by the laws of the
    State of California, USA, and you and Oracle agree to submit to the
    exclusive jurisdiction of, and venue in, the courts of San Francisco
    or Santa Clara counties in California in any dispute arising out of or
    relating to this Agreement.

    Do you agree to these license terms and conditions (y/n)? y

    License accepted. For batch installation add
    --accept-license=56be48f923303c8cababb0bb4c478284b688ed23f16d775d729b89a2e8e5f9eb
    to the VBoxManage command line.

    0%...10%...20%...30%...40%...50%...60%...70%...80%...90%...100%
    Successfully installed "Oracle VM VirtualBox Extension Pack".

    VirtualBox Extension Pack have been successfully installed on CentOS 7 server.



    Configure vboxweb-service on CentOS 7:

    phpVirtualBox admin communicate to our VirtualBox server using vboxweb-service. Therefore, we have to configure vboxweb-service before installing phpVirtualBox.

    Create a user that will run the vboxweb-service process.

    [root@virtualbox-01 tmp]# useradd vbox
    [root@virtualbox-01 tmp]# passwd vbox
    Changing password for user vbox.
    New password:
    BAD PASSWORD: The password is shorter than 8 characters
    Retype new password:
    passwd: all authentication tokens updated successfully.

    Create a configuration file for vboxweb-service.

    [root@virtualbox-01 tmp]# echo "VBOXWEB_USER=vbox" > /etc/default/virtualbox
    [root@virtualbox-01 tmp]# echo "VBOXWEB_HOST=localhost" >> /etc/default/virtualbox

    Restart vboxweb-service.

    [root@virtualbox-01 tmp]# systemctl restart vboxweb-service.service

    Allow vboxweb-service port in Linux firewall.

    [root@virtualbox-01 tmp]# firewall-cmd --permanent --add-port=18083/tcp
    success
    [root@virtualbox-01 tmp]# firewall-cmd --reload
    success



    Installing phpVirtualBox on CentOS 7:

    phpVirtualBox is a PHP based web application. Therefore, it can be deployed on a web server with PHP language support.

    We are installing Apache HTTP server and PHP 5.4 along with other required packages using yum command.

    [root@virtualbox-01 ~]# yum install -y httpd php php-soap php-xml
    Loaded plugins: fastestmirror
    Loading mirror speeds from cached hostfile
    * base: ftp3.isra.edu.pk
    * extras: ftp3.isra.edu.pk
    * updates: ftp3.isra.edu.pk
    Resolving Dependencies
    --> Running transaction check
    ---> Package httpd.x86_64 0:2.4.6-89.el7.centos will be installed
    --> Processing Dependency: httpd-tools = 2.4.6-89.el7.centos for package: httpd-2.4.6-89.el7.centos.x86_64
    --> Processing Dependency: /etc/mime.types for package: httpd-2.4.6-89.el7.centos.x86_64
    --> Processing Dependency: libaprutil-1.so.0()(64bit) for package: httpd-2.4.6-89.el7.centos.x86_64
    --> Processing Dependency: libapr-1.so.0()(64bit) for package: httpd-2.4.6-89.el7.centos.x86_64
    ---> Package php.x86_64 0:5.4.16-46.el7 will be installed
    --> Processing Dependency: php-common(x86-64) = 5.4.16-46.el7 for package: php-5.4.16-46.el7.x86_64
    --> Processing Dependency: php-cli(x86-64) = 5.4.16-46.el7 for package: php-5.4.16-46.el7.x86_64
    ---> Package php-soap.x86_64 0:5.4.16-46.el7 will be installed
    ---> Package php-xml.x86_64 0:5.4.16-46.el7 will be installed
    --> Running transaction check
    ---> Package apr.x86_64 0:1.4.8-3.el7_4.1 will be installed
    ---> Package apr-util.x86_64 0:1.5.2-6.el7 will be installed
    ---> Package httpd-tools.x86_64 0:2.4.6-89.el7.centos will be installed
    ---> Package mailcap.noarch 0:2.1.41-2.el7 will be installed
    ---> Package php-cli.x86_64 0:5.4.16-46.el7 will be installed
    ---> Package php-common.x86_64 0:5.4.16-46.el7 will be installed
    --> Processing Dependency: libzip.so.2()(64bit) for package: php-common-5.4.16-46.el7.x86_64
    --> Running transaction check
    ---> Package libzip.x86_64 0:0.10.1-8.el7 will be installed
    --> Finished Dependency Resolution

    Dependencies Resolved

    ================================================================================
    Package Arch Version Repository Size
    ================================================================================
    Installing:
    httpd x86_64 2.4.6-89.el7.centos updates 2.7 M
    php x86_64 5.4.16-46.el7 base 1.4 M
    php-soap x86_64 5.4.16-46.el7 base 159 k
    php-xml x86_64 5.4.16-46.el7 base 126 k
    Installing for dependencies:
    apr x86_64 1.4.8-3.el7_4.1 base 103 k
    apr-util x86_64 1.5.2-6.el7 base 92 k
    httpd-tools x86_64 2.4.6-89.el7.centos updates 90 k
    libzip x86_64 0.10.1-8.el7 base 48 k
    mailcap noarch 2.1.41-2.el7 base 31 k
    php-cli x86_64 5.4.16-46.el7 base 2.7 M
    php-common x86_64 5.4.16-46.el7 base 565 k

    Transaction Summary
    ================================================================================
    Install 4 Packages (+7 Dependent packages)

    Total download size: 8.0 M
    Installed size: 28 M
    Downloading packages:
    (1/11): apr-1.4.8-3.el7_4.1.x86_64.rpm | 103 kB 00:01
    (2/11): mailcap-2.1.41-2.el7.noarch.rpm | 31 kB 00:00
    (3/11): apr-util-1.5.2-6.el7.x86_64.rpm | 92 kB 00:03
    (4/11): libzip-0.10.1-8.el7.x86_64.rpm | 48 kB 00:06
    (5/11): httpd-tools-2.4.6-89.el7.centos.x86_64.rpm | 90 kB 00:07
    (6/11): php-soap-5.4.16-46.el7.x86_64.rpm | 159 kB 00:04
    (7/11): php-xml-5.4.16-46.el7.x86_64.rpm | 126 kB 00:04
    (8/11): php-5.4.16-46.el7.x86_64.rpm | 1.4 MB 00:16
    (9/11): php-cli-5.4.16-46.el7.x86_64.rpm | 2.7 MB 00:17
    (10/11): php-common-5.4.16-46.el7.x86_64.rpm | 565 kB 00:17
    (11/11): httpd-2.4.6-89.el7.centos.x86_64.rpm | 2.7 MB 00:24
    --------------------------------------------------------------------------------
    Total 335 kB/s | 8.0 MB 00:24
    Running transaction check
    Running transaction test
    Transaction test succeeded
    Running transaction
    Installing : apr-1.4.8-3.el7_4.1.x86_64 1/11
    Installing : apr-util-1.5.2-6.el7.x86_64 2/11
    Installing : httpd-tools-2.4.6-89.el7.centos.x86_64 3/11
    Installing : libzip-0.10.1-8.el7.x86_64 4/11
    Installing : php-common-5.4.16-46.el7.x86_64 5/11
    Installing : php-cli-5.4.16-46.el7.x86_64 6/11
    Installing : mailcap-2.1.41-2.el7.noarch 7/11
    Installing : httpd-2.4.6-89.el7.centos.x86_64 8/11
    Installing : php-5.4.16-46.el7.x86_64 9/11
    Installing : php-soap-5.4.16-46.el7.x86_64 10/11
    Installing : php-xml-5.4.16-46.el7.x86_64 11/11
    Verifying : httpd-tools-2.4.6-89.el7.centos.x86_64 1/11
    Verifying : php-soap-5.4.16-46.el7.x86_64 2/11
    Verifying : mailcap-2.1.41-2.el7.noarch 3/11
    Verifying : apr-util-1.5.2-6.el7.x86_64 4/11
    Verifying : php-cli-5.4.16-46.el7.x86_64 5/11
    Verifying : libzip-0.10.1-8.el7.x86_64 6/11
    Verifying : httpd-2.4.6-89.el7.centos.x86_64 7/11
    Verifying : php-5.4.16-46.el7.x86_64 8/11
    Verifying : php-common-5.4.16-46.el7.x86_64 9/11
    Verifying : apr-1.4.8-3.el7_4.1.x86_64 10/11
    Verifying : php-xml-5.4.16-46.el7.x86_64 11/11

    Installed:
    httpd.x86_64 0:2.4.6-89.el7.centos php.x86_64 0:5.4.16-46.el7
    php-soap.x86_64 0:5.4.16-46.el7 php-xml.x86_64 0:5.4.16-46.el7

    Dependency Installed:
    apr.x86_64 0:1.4.8-3.el7_4.1 apr-util.x86_64 0:1.5.2-6.el7
    httpd-tools.x86_64 0:2.4.6-89.el7.centos libzip.x86_64 0:0.10.1-8.el7
    mailcap.noarch 0:2.1.41-2.el7 php-cli.x86_64 0:5.4.16-46.el7
    php-common.x86_64 0:5.4.16-46.el7

    Complete!

    Enable and start Apache service.

    [root@virtualbox-01 ~]# systemctl enable httpd.service
    Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.
    [root@virtualbox-01 ~]# systemctl start httpd.service

    Allow HTTP service in Linux firewall.

    [root@virtualbox-01 ~]# firewall-cmd --permanent --add-service=http
    success
    [root@virtualbox-01 ~]# firewall-cmd --reload
    success

    phpVirtualBox is free and open source web interface for VirtualBox. phpVirtualBox is available at Github.

    [root@virtualbox-01 ~]# cd /tmp
    [root@virtualbox-01 tmp]# wget https://github.com/phpvirtualbox/phpvirtualbox/archive/master.zip
    --2019-07-16 21:21:14-- https://github.com/phpvirtualbox/phpvirtualbox/archive/master.zip
    Resolving github.com (github.com)... 192.30.253.112
    Connecting to github.com (github.com)|192.30.253.112|:443... connected.
    HTTP request sent, awaiting response... 302 Found
    Location: https://codeload.github.com/phpvirtualbox/phpvirtualbox/zip/master [following]
    --2019-07-16 21:21:18-- https://codeload.github.com/phpvirtualbox/phpvirtualbox/zip/master
    Resolving codeload.github.com (codeload.github.com)... 192.30.253.120
    Connecting to codeload.github.com (codeload.github.com)|192.30.253.120|:443... connected.
    HTTP request sent, awaiting response... 200 OK
    Length: unspecified [application/zip]
    Saving to: âmaster.zipâ

    [ <=> ] 4,247,924 175KB/s in 40s

    2019-07-16 21:21:59 (103 KB/s) - âmaster.zipâ saved [4247924]

    Extract master.zip file to Apache document root.

    [root@virtualbox-01 tmp]# unzip master.zip -d /var/www/html/
    ...
    inflating: /var/www/html/phpvirtualbox-master/panes/wizardNewHD.html
    inflating: /var/www/html/phpvirtualbox-master/panes/wizardNewHDAdvanced.html
    inflating: /var/www/html/phpvirtualbox-master/panes/wizardNewVM.html
    inflating: /var/www/html/phpvirtualbox-master/panes/wizardNewVMAdvanced.html
    inflating: /var/www/html/phpvirtualbox-master/phpvirtualbox.conf
    creating: /var/www/html/phpvirtualbox-master/rdpweb/
    inflating: /var/www/html/phpvirtualbox-master/rdpweb/RDPClientUI.swf
    inflating: /var/www/html/phpvirtualbox-master/rdpweb/license_3rd.txt
    inflating: /var/www/html/phpvirtualbox-master/rdpweb/swfobject.js
    inflating: /var/www/html/phpvirtualbox-master/rdpweb/webclient.js
    inflating: /var/www/html/phpvirtualbox-master/rdpweb/webclient3.html
    inflating: /var/www/html/phpvirtualbox-master/recovery.php-disabled
    creating: /var/www/html/phpvirtualbox-master/tightvnc/
    inflating: /var/www/html/phpvirtualbox-master/tightvnc/VncViewer.jar
    inflating: /var/www/html/phpvirtualbox-master/vboxinit

    Rename /var/www/html/phpvirtualbox-master directory for easy accessibility.

    [root@virtualbox-01 tmp]# mv /var/www/html/phpvirtualbox-master /var/www/html/phpvirtualbox

    Rename phpVirtualBox configuration file as follows.

    [root@virtualbox-01 tmp]# mv /var/www/html/phpvirtualbox/config.php-example /var/www/html/phpvirtualbox/config.php

    Obtain the username and password defined in config.php file.

    [root@virtualbox-01 ~]# grep -e \$username -e \$password /var/www/html/phpvirtualbox/config.php
    var $username = 'vbox';
    var $password = 'pass';

    The above values must match with the OS user vbox, that we have created above.

    We have already created the OS user with the same username and password, otherwise you have to edit config.php to match it.

    (Note: We are using an easy password for the sake of simplicity, but you are recommended to set a strong password here.)

    Set SELinux boolean, so the Apache can access other network services.

    [root@virtualbox-01 ~]# setsebool -P httpd_can_network_connect on

    Browse URL http://virtualbox-01.example.com/phpvirtualbox/ in a client's browser.

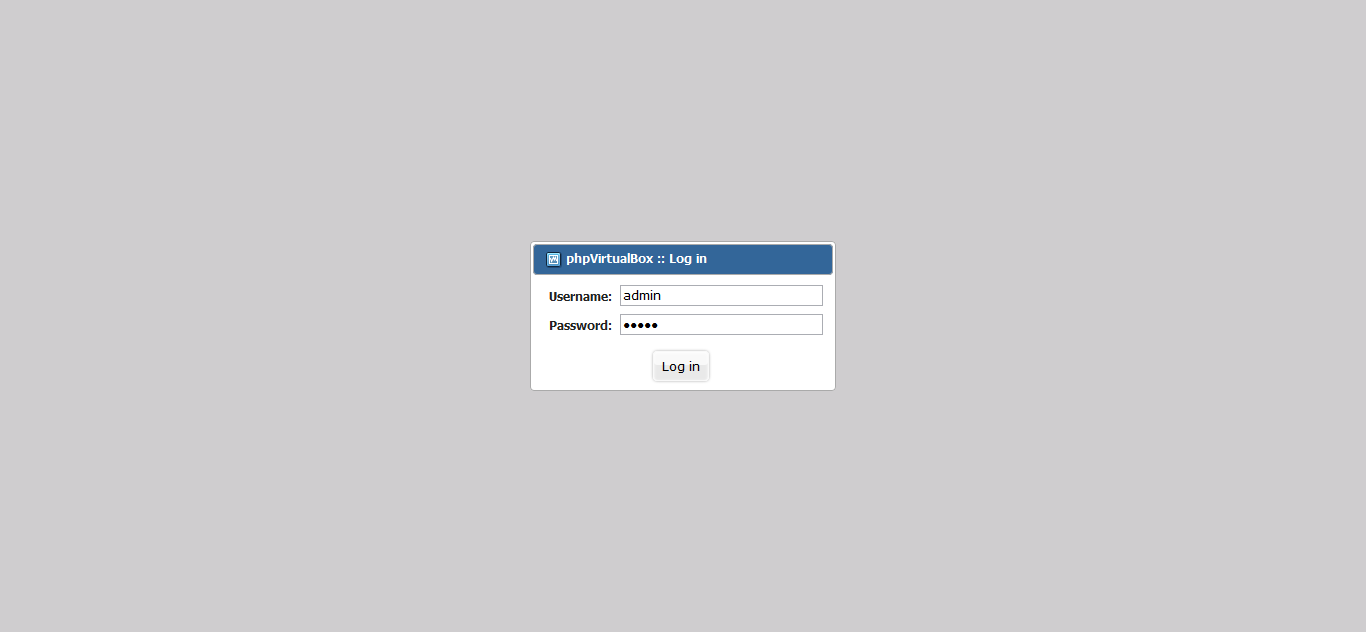

    01-phpvirtualbox-centos-7-login

    Login with phpVirtualBox default username/password (i.e. admin/admin).

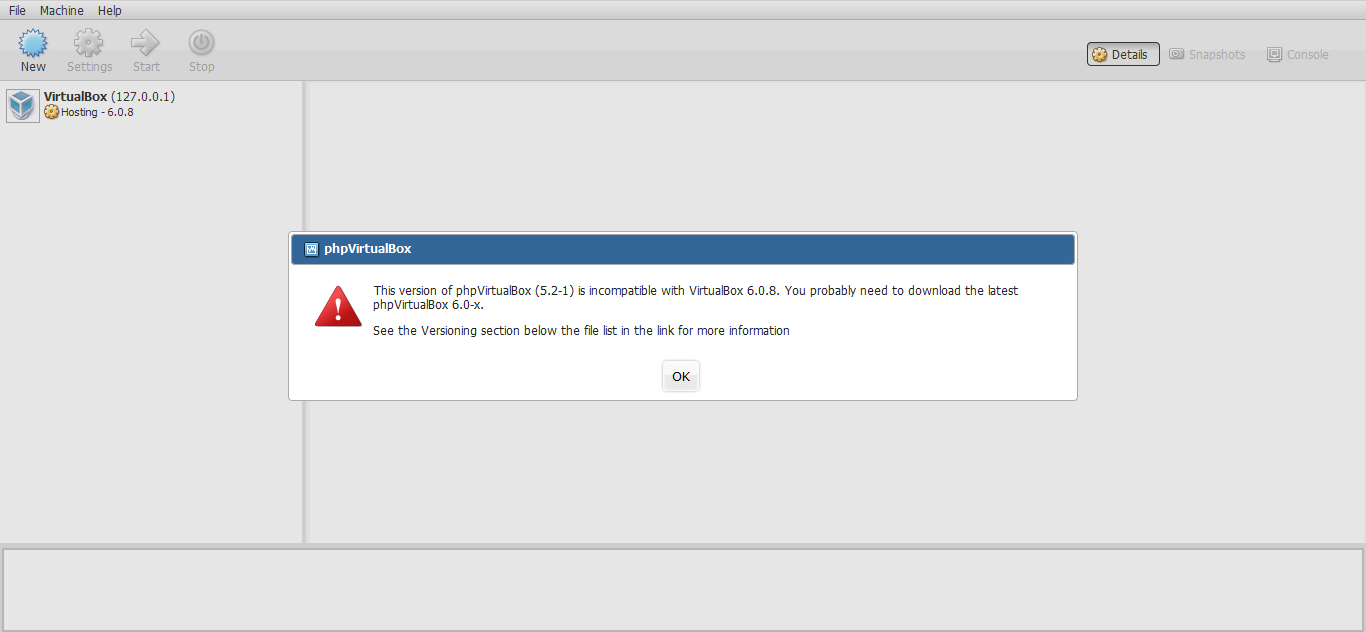

    02-phpvirtualbox-centos-7-compatibility-error

    After login phpVirtualBox web interface may display a compatibility warning and advise us to install a latest version of phpVirtualBox.

    Since, we are already installing the latest version of phpVirtualBox therefore, we have no other option to ignore this warning until a new version of phpVirtualBox is available.

    03-phpvirtualbox-centos-7-dashboard

    We are now at the Dashboard of the phpVirtualBox web interface.

    Click on New to create a new virtual machine.

    04-phpvirtualbox-centos-7-create-virtual-machine

    Provide virtual machine name and select operating system thereon and click on Next >>.

    05-phpvirtualbox-centos-7-memory

    Set memory size and click on Next >>.

    06-phpvirtualbox-centos-7-hard-disk

    Select hard disk setting and click on Create.

    07-phpvirtualbox-centos-7-hard-disk-file-type

    Select hard disk file type and click on Next >>.

    08--phpvirtualbox-centos-7-storage

    Select Storage on physical disk and click on Next >>.

    09-phpvirtualbox-centos-7-file-location

    Select file location and size and click on Next >>.

    10-phpvirtualbox-centos-7-dashboard

    Virtual machine has been created successfully.

    One last thing is to change the default password of admin user.

    Click on File > Change Password.

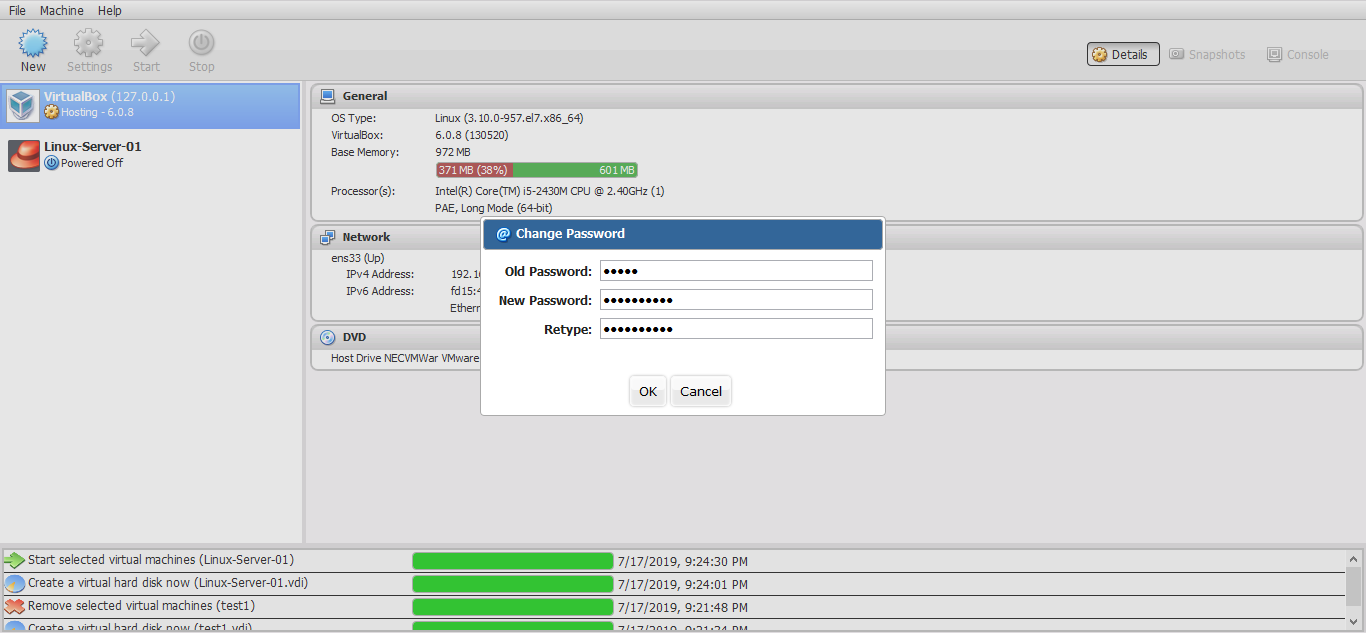

    11-phpvirtualbox-centos-7-change-password

    Set a strong password for admin user.

    We have successfully installed VirtualBox and phpVirtualBox on CentOS 7 server.

    0 Comments
